tyFlate Tyre Inflation System
Flyer Pictur 1

D6 hihg flow system with stainless steel valves

The tyFlate Control System regulates the deflation and inflation of your tyres. The whole system consists of a fixed installed pipe harness, with retractable or removable hoses on the wheel arches, special patented quick release, high air-flow tyre valves and the tyFlate Control Unit. A portable or permanently installed compressor is also required for the inflation of the tyres. Deflation of all four tyres simultaneously is a simple and convenient process of setting the required pressure on the tyFlate Control Unit, connecting the tyres and wait for the process to finish, normally within 2 minutes. Inflation of all four tyres simultaneous is the same simple process, plus switching on the compressor to provide the air. The system can either be used with standard Schrader tyre valves or the high flow stainless steel valves.


- tyFlate Control Unit

- Patented tyre Valves

- Permanent installed pipe harness

- Air Compressor (optional, can use own compressor)


- Auto stop of deflation and inflation at preset pressure

- Easy adjustment

- Suitable for pressures from 0 – 10 Bar

D6 Standard flow
D6s for use with standard Schrader tyre valves


Inflation Control System

The patented control system regulates the inflation and deflation air flow. Once the set pressure (on the control unit) is reached, it closes the  airway and no more air is inflated or deflated from the tyres.

The system allows the user to deflate or inflate all four tyres simultaneously.

The permanently installed system allows for easy and fast operation.

Quick couplings make it easy to connect and allow for high volume of air flow.

Years of experience from inflating and deflating tyres on military vehicles has lead to the development of this compact system aimed at making the process of inflation and deflation as easy and quick as possible. Although the process is super fast ( 4mins max to deflate all four tyres and under 6  minutes to inflate, depending on the size of compressor), the system will stop the air flow process automatically on its own. So the vehicle owner can attend to other tasks (for four minutes) if preferred, while the system takes care of the inflation or deflation.

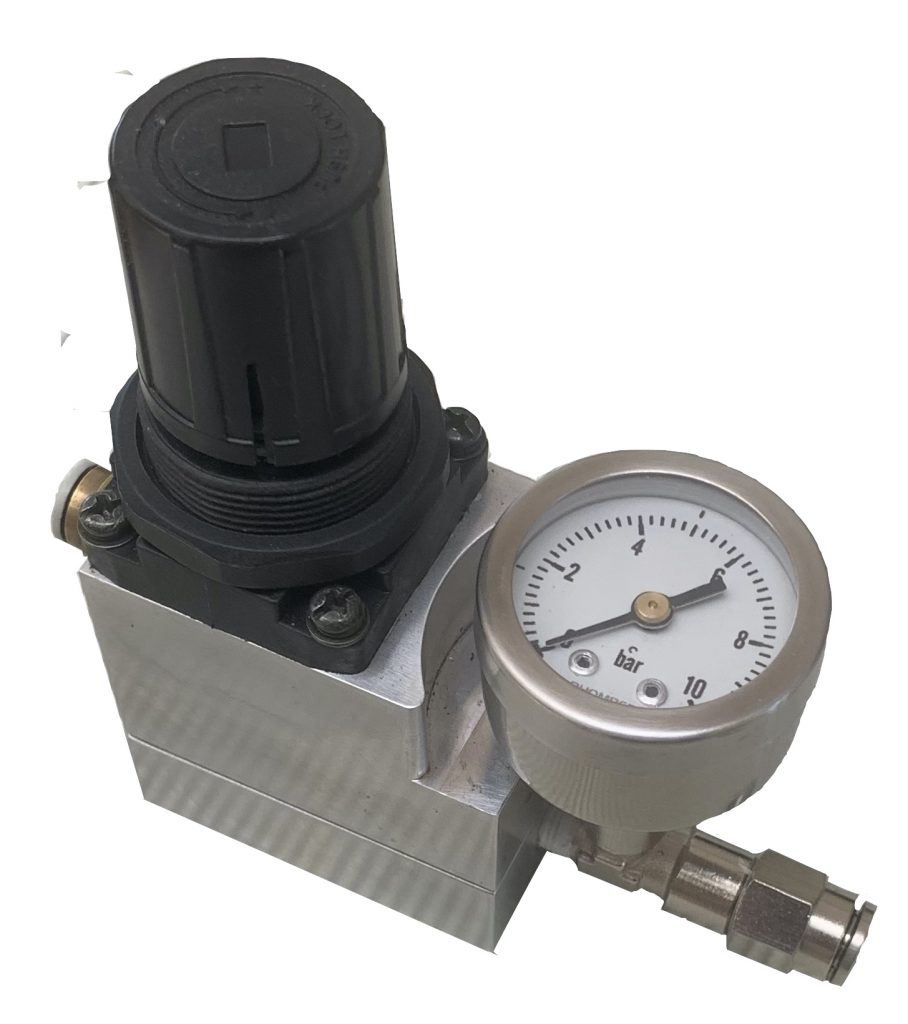

D6 Control unit
Tyre Valves
The systems can be used either with standard tyre valves or with the specially designed high flow quick coupling valves seen below.
The systems using the standard tyre valves (standard flow system) cost less than the high flow systems, yet still offering all the comfort and easy of the high flow systems
Valves new
Stainless Steel quick coupling valves
The valves allow for up to 10 times the air flow compared to a normal tyre valve. The quick couplers installed on each wheel arch lock onto the valves with a single easy motion for ease of operation.
Schrader Chuck
Normal valve Schrader Chuck
When opting to use the normal standard vavles, the four hoses on the wheels are equipped with this quick connect chuck. The air flow with this version is less than when using the high flow stainless valves.
Valve with TPMS
TPMS sensor mounted on valve.
The valves are designed for the TPMS internal sensors to mount directly onto it on the inside of the rim. Standard TPMS valves with internal sensors can be used with the Schrader Chuck systems.
System Options

Different valve and piping options are available to suit individual needs. All versions can be used either with normal tyre valves of the high flow quick coupling stainless steel valves.

Option 1: On some vehicles the pipes at the wheels can simply retract into body cavities in the wheel arches of bumpers for instance.

Option 2:  Makes use of detachable hoses that can be taken off and stored in the vehicle when not in use. A quick coupling nipple is installed close to each wheel.

Option 3: Makes use of hose depots, housing a coiled hose. The depots are installed close to the four wheels.


Option 2

Hose Depot

Option 3

Inflate RR

Option 1

Front Coiled

Option 3

Back Wheel

Option 1

Nardi 12V Air Compressors

We are the sole agent for Nardi low pressure compressors.

There are three models available:

- 450W single cylinder, oilless,  45Amp, 90 l/min

- 500W, oilless boxer twin cylinder, 55Amp, 190 l/min

- 600W, oilless 62Amp, boxer twin cylinder, 235 l/min

These industrial standard compressors, made in Italy, are extremely tough and capable, having high flow rates, high duty cycles and tried and tested in military verhicles in Australia, the Middle East and other countries.

Valve with TPMS

TPMS (tyre pressure monitoring system) monitors the tyre pressure of each tyre individually and displays it normally on a small unit in the cabin. It includes the following very useful functions:

- actual tyre pressure real time

- alarm for fast tyre pressure lost

- alarm for low tyre pressure (for instance slow leak)

- alarm for tyre temperature

TPMS systems compliments the tyFlate system and therefor the tyre valve has been designed for an internal TPMS sensor to be mounted directly on the valve on the inside of the rim.

TPMS systems that fit our tyre valves can be purchased directly from us.
